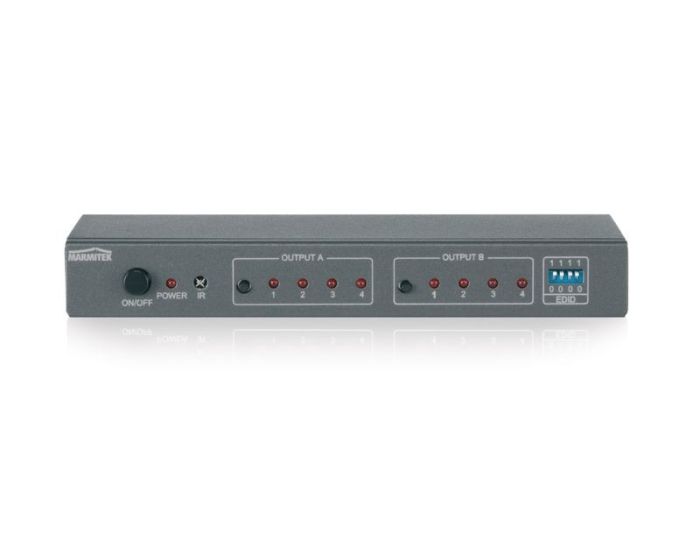

Connect two HDTVs or HD projectors and switch between all four connected HDMI devices
Ideal for presentations or distribution to another room.
Built-in HDMI Matrix Switcher makes it possible to watch different HDMI sources on two screens (HDTV or HD projector) independently.
Suitable for Full HD 1080p and all 3D formats.
Means that it is not necessary to change HDMI cables if you wish to watch films or want to play games on another screen.
With built-in repeater and equalizer for correcting any possible loss of signal, so you can connect up to 15 metres of HDMI cable to the output.
HDMI ATC certified; fully compatible with all HDMI certified devices.
Free of interference because of the solid metal casing.
The Connect 540 UHD supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment
Kit Contents
1x HDMI Switcher
1x Remote control (battery included)
1x energy saving power supply
1x HDMI cable
1x User manual
Technical Data
Connections:
HDMI input 4x HDMI (19-pin female)
HDMI output 2x HDMI (19-pin female)
Video:
Supported resolutions 480p, 576p, 720p, 1080i, 1080p and 4k2k@24/30
HDMI standards HDCP, CEC, EDID, DVI, all 3D formats, Deep Colour (36-bit), x.v.colour
Video Bandwidth 10.2Gbps
Clock frequency 300MHZ
Audio:
HDMI audio DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH
Ideal for presentations or distribution to another room.
Built-in HDMI Matrix Switcher makes it possible to watch different HDMI sources on two screens (HDTV or HD projector) independently.
Suitable for Full HD 1080p and all 3D formats.
Means that it is not necessary to change HDMI cables if you wish to watch films or want to play games on another screen.
With built-in repeater and equalizer for correcting any possible loss of signal, so you can connect up to 15 metres of HDMI cable to the output.
HDMI ATC certified; fully compatible with all HDMI certified devices.
Free of interference because of the solid metal casing.
The Connect 540 UHD supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment
Kit Contents
1x HDMI Switcher
1x Remote control (battery included)
1x energy saving power supply
1x HDMI cable
1x User manual
Technical Data
Connections:
HDMI input 4x HDMI (19-pin female)
HDMI output 2x HDMI (19-pin female)
Video:
Supported resolutions 480p, 576p, 720p, 1080i, 1080p and 4k2k@24/30
HDMI standards HDCP, CEC, EDID, DVI, all 3D formats, Deep Colour (36-bit), x.v.colour
Video Bandwidth 10.2Gbps
Clock frequency 300MHZ
Audio:
HDMI audio DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH
| Weight (kg) | 0.885000 |
|---|---|
| Manufacturer | Marmitek |
| Type | Video Matrix |
| No Inputs x No Outputs | 4x2 |
| Warranty | 1 year |
| Colour | Dark Grey |
| Main Power | 5V |
| Input Types | HDMI |
| Maximum Video Inputs | 4 |
| Supported Outputs | HDMI |
| Maximum Video Outputs | 2 |
| Supported Audio Formats | Dolby TrueHD 5.1 |
| Control Method | IR |
| IR Control | Yes |
| Multiroom Capable | No |
| HDMI Version | HDMI® 1.4 (a/b) |
| HDCP | HDCP 1.4 |
