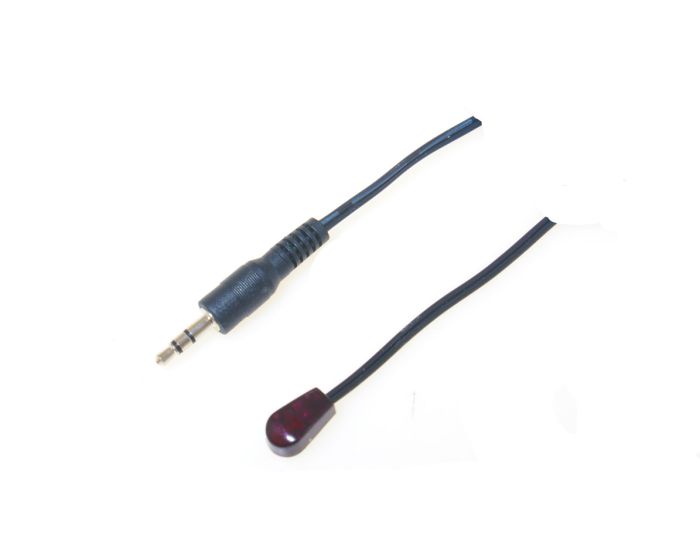

Keene IR Single Output Standard Emitter Wand For Close Range Use Visible Blinking Function
This is a small discreet emitter that can be mounted directly onto the device's fascia by means of a small sticky pad. A small red LED 'blinks' each time an IR signal is emitted as confirmation that the command has been sent. It can also be mounted on the shelf provided that it is positioned in close range (approx 30cm) to the equipments IR receiver window.
Dimensions of emitter: L x 15mm x W 8mm x D 6mm.
Fitted with a 2 metre cable.
Consider using an IR Emitter Shield for reliable operation
(This item is designed for use with Keene branded IR distribution systems only)
Other IR emitter wand options
We have a range of IR emitter wands to accomodate most requirements.
Medium range emitter wand with a range of about two metres it is ideal for fixing to the shelf in front of the device to be controlled.
Long range high powered emitter wand with a range of up to ten metres it can control devices located away from the main group, or control a number of devices in an immediate area. (IRBKIT only)
Side firing emitter wand designed to be attached to the front fascia of the device to be controlled.
Close range blinking emitter wand small and discreet, it attaches directly to the fascia of the device to be controlled. Each time an IR signal is emitter the small red LED 'blinks' a confirmation.
Dual blinking emitter wand a twin version of the above and two emitters in one. Ideal where the number of devices to be controlled is larger than the number of emitter wand outputs on the IRBKIT distribution amplifier.
You can also view the IR Receiver and emitter connection diagrams here (Acrobat pdf file)
|Product Brand||Keene Electronics|
|Info||Small Fascia Mounted IR Emitter with visual blink function|
|•||For use with Keene IR Equipment Only|
|•||Fitted with a 2 metre cable.|
|•||Blinking LED to confirm sent commands|
1) Data Sheet (PDF)
