Deliver Full HD 1080p up to 50m / 164 ft over a single Cat 6 cable from eight HDMI sources to eight displays with two-way IR, ARC (at RX), stereo audio extraction (at hub) and two mirrored HDMI ports for the easy integration of AVRs or mirrored displays. All stereo and multichannel audio formats are supported up to and including Dolby-Atmos and DTS:X (see the specs section for the full list.
The mHub 2K (8x8) has been engineered to be reliable and simple to install, providing dependable HDMI switching performance for end users. The mHub 2K (8x8) has a slim, streamlined form factor. The central hub measures just 1U in size and has intuitive tactile buttons for source switching on its front panel alongside an LCD display.
Control is delivered through TCP/IP, RS232 or two-way discrete IR, meaning the mHub 2K (8x8) can be easily integrated with a variety of third party control systems. Alternatively, you can simply use your included remote for source switching, and your source remotes for source control at each location with full IR pass-back.
The 50m off-white display receivers measure 49(W) X 81 (D) X 25 (H) mm and can be powered by either a 5V power supply or by USB to 5V power cables (if supported by the display) for a neater in-room finish. These USB to 5V power leads come supplied with every mHub 2K (8x8) package.

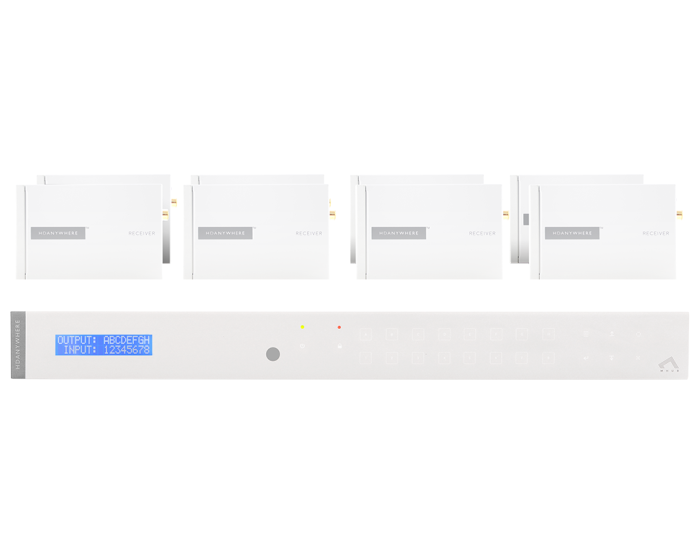

All mHub 2K (8x8) matrixes are sold as complete install packages. In the box, you'll get access to everything you need: a 1U rackmountable central hub with rack ears and 12V PSU, 8 x display receivers with 5V PSUs, IR kit, a small matrix remote, and 8 x USB to 5V power leads. All you need to do is add the HDMI cables!
*PLEASE NOTE*: This is refurbished unit therefore it may have some minor marks or superficial scratches to the surface. Any defects are cosmetic only and the unit is tested to ensure it is 100% fully functional prior to dispatch. Our refurbished mHubs come with a 6 month warranty as standard.
| Shipping Weight (kg) | 6.000000 |
|---|---|
| Manufacturer | HDANYWHERE |
| Type | Video Matrix |
| Product Range | MHUB |
| Warranty | 6 months |
| Colour | Cream |
| Main Power | 12V |
| Form Factor | 1U |
| Input Types | HDMI |
| Audio Input Types | N/A |
| Maximum Video Inputs | 8 |
| Supported Outputs | HDMI, HDMI Over Ethernet |
| Maximum Video Outputs | 8 |
| Control Method | IR, IP |
| IR Control | 2-Way |
| Multiroom Capable | Yes |
| HDMI Version | HDMI® 1.4 |
| HDCP | HDCP 1.4 |
