MHUB U (4x3+1)
Cloud monitorable 4x3+1 HDMI/HDBT+HDMI matrix system with a 40m UHD 4K or 70m 1080p transmission range. An integrated IP>IR control processor enables property-wide control of all the connected sources and displays via the free uControl universal remote App or Alexa voice commands.
Features:
- HDMI® 2.0 featured - supports up to 18Gbps
- All display receivers powered via PoH
- IR over HDMI injector dongle included
- Web GUI for easy config and setup (MHUB-OS)
- Remote system monitoring (HDA Cloud)
- Advanced EDID management
- Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®
- Supports all current audio formats up to and including Dolby Atmos® and DTS:X®
- Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack
- 4K>1080 down/up-scaling receiver option available

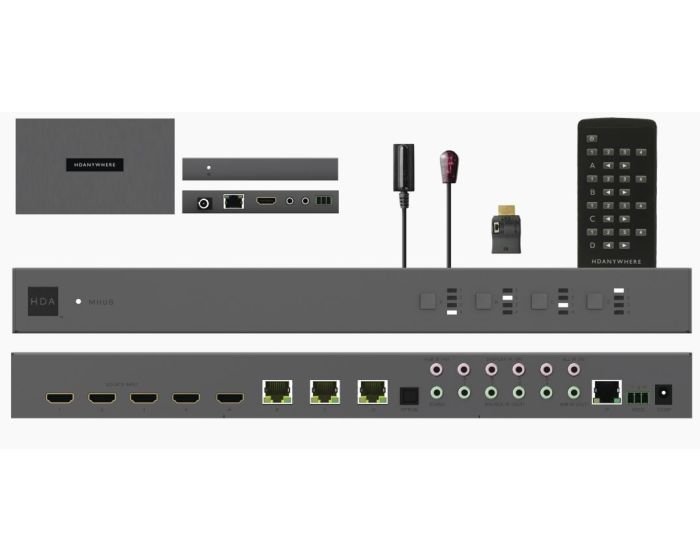

- Sold as a complete install package, with Receiver, IR cables included.
| Weight (kg) | 4.000000 |
|---|---|
| Manufacturer | HDANYWHERE |
| Type | Video Matrix |
| No Inputs x No Outputs | 4x3+1 |
| Distance at Max. Resolution | 40m (4K) |
| Product Range | MHUB |
| Warranty | 2 years + 3 years with Cloud registration |
| Colour | Black & Silver |
| Main Power | 110-240V |
| Form Factor | 1U |
| Input Types | HDMI |
| Audio Input Types | N/A |
| Maximum Video Inputs | 4 |
| Supported Outputs | HDMI, HDBaseT |
| Audio Output Types | 3.5mm Stereo, Optical |
| Maximum Video Outputs | 4 |
| Supported Video Resolution | 4K 60Hz 4:4:4 |
| Control Method | IR, RS232, TCP/IP, Web GUI, App Control, Alexa |
| IR Control | 2-Way |
| Multiroom Capable | Yes |
| Instruction Manual | https://drive.google.com/open?id=1I3ACE5LV9mB64RnGG65IC7naC1safk2K |
| HDMI Version | HDMI® 2.0 |
| HDCP | HDCP 2.2 |
