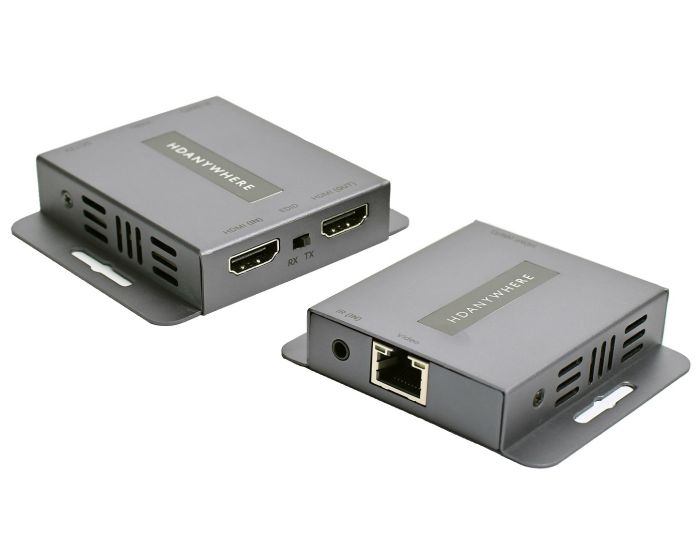

An ultra lightweight, palm-sized HDMI extender set supporting all resolutions up to Full HD 1080p 60Hz content uncompressed up to 60 metres over one twisted pair Cat cable. Control of the transmitter source is made possible via a return IR channel and included IR cabling.
The transmitter incorporates a HDMI loop/splitter out port for connecting a second display, or for daisy-chaining additional extenders in series. PoE power means the receiver is powered via the Cat cable.
|TX / RX Form Factor||Lightweight slender aluminium enclosure with integrated mounting wings
||Dimensions (W/D/H)||78 / 67 / 16 mm (TX and RX)|
|Inputs x outputs
TX HDMI in / RJ45 out / IR 3.5mm jack (out = from RX)
RX RJ45 in / HDMI out / IR 3.5mm jack (in = to TX)
||12V/1A DC type connector
(US/EU standards, CE/FCC/UL certified)
||32ºF to 104ºF (0ºC to 40ºC)|
||-4ºF to 140ºF (20ºC to 60ºC)|
||± 8kV (air-gap discharge) ± 4kV (contact discharge)
||20-90% RH (non-condensing)|
||2 year guarantee|
|By Type||Video Extender Kit|
|Distance at Max. Resolution||60m (1080p)|
