XTND 4K (40) TPC

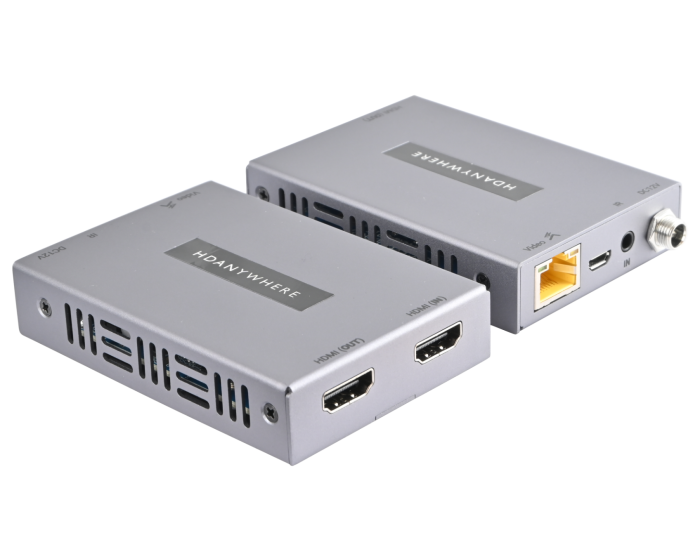

A compact, palm-sized HDMI 2.0 extender set - supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR formats inc. Dolby Vision®, HDR10 and HLG up to 40 metres, over one twisted pair Cat cable. Control of the transmitter source is made possible via a return IR channel and included IR cabling. Tipping Point Compression w/DSC enables the transmission of 18Gbps content, with no human-perceivable difference in video quality.
TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling and colour space options (4:4:4, 4:2:2, and 4:2:0).
- HDMI® 2.0 (a/b) HDCP 2.2 compliant
- 18Gbps data rate throughout (up to 40m)
- HDMI 2.0 (Native 18G) loop port on TX
- Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4
- Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
- Supports all current audio formats up to Dolby Atmos® and DTS:X®
- Bi-directional PoH - can be powered from either RX or TX
- Sold as a complete install package, with all IR cabling and mounting kit included
- UK / EU / AU / US multi-territory adapters included
|Type||Video Extender Kit|
|Supported Video Resolution||4K 60Hz 4:4:4|
|Distance at Max. Resolution||40m (4K)|
