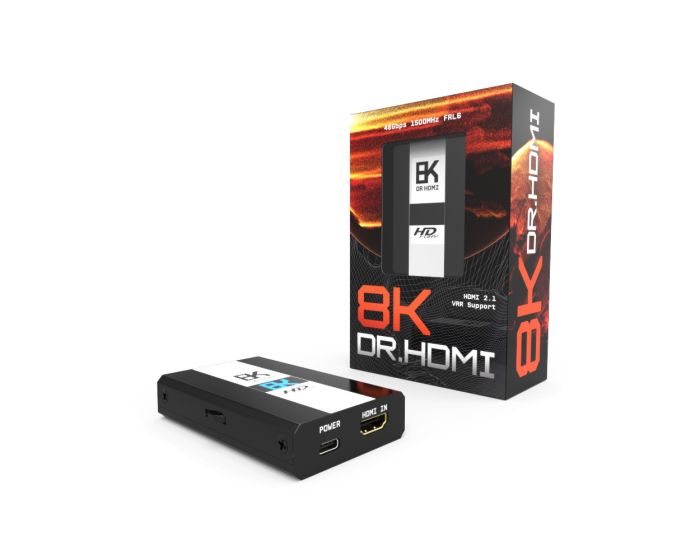

World First HDMI2.1 EDID Manager with webserver + Android/iOS APP.
With FRL6/48Gbps/1500MHz support and an embedded HDfury webserver, Dr.HDMI 8K is the world most advanced EDID manager ever made.
Dr HDMI 8K can help to solve most HDMI issues such as handshaking issue, compatibility issue and/or any EDID related issue. It helps to keep a source always ON or tricked into a defined state which is especially useful for system integrators.
Dr HDMI 8K can also boost signal integrity and extend +5v signal through a HDMI/DVI-D chain. For example, it can work hands in hands with HDfury products to extend compatibility range. It can also be used to limit the source output resolution.
Dr HDMI 8K acts as an EDID manager, HDMI/DVI-D emulator and repeater that comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank, HTPC mode and more.
Features:
- Unique FRL6/48Gbps/1500MHz support with 0ms latency.
- Embedded HDfury webserver for remote control from any computer/tablet/phone on same network.
- Unlock new capabilities on LG 4K OLED from 2019/2020.
- Solve Most HDMI issues.
- Fix HDMI handshaking issue.
- EDID Manager and Detective feature.
- Easy EDID table manipulation via embedded Webserver, control button and OLED.
- HDMI/DVI-D emulator and repeater.
- Maintain 8K and 4K, 3840×2160, 2160p video without losing sync.
- 100 Predefined Banks (8K VRR, 4K HDR, 4K LLDV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc..).
- 10 User programmable EDID Banks.
- Support: VRR, HDR, HDR10+, HLG, DV & LLDV, ALLM, IMAX.
- All DV modes supported including DV mode 0, mode 1, mode 2 and LLDV.
- Sink EDID sniffing feature.
- Extend signal integrity up to 50 meters.
- HTPC mode to avoid detection of the connected sink status.
- Info and details on OLED display and webserver.
- +5V Injector feature to power active cable.
- HDCP compliant.
Technical Specs:
| HDMI revision: | HDMI 2.1 – FRL6/1500Mcsc/48Gbps. |
| Dr.8K Support: | FRL6/1500MHz/48Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, VRR, IMAX. |
| Max Resolution: | 8K60 4:4:4 8b, 8K60 4:2:2 12b, 4K120 4:4:4 10b or 8K60 4:2:0 10b. |
| TOTAL I/O: | 1 HDMI In, 1 HDMI Out, 1 RJ45/Ethernet (webserver), 1 USB-C (power). |
| EDID Banks: | 100 EDID banks (18 FHD, 48 UHD, 24 FUHD, 10 user programmable, 1 copy from Sink device). |
| Signal Integrity: | Up to 50 meters cable loss compensation. |
| Operating Modes: | EDID management, HTPC mode, +5V HDMI Power injector. |
| Special: | Reset HPD-event on the fly, Cable equalization, HDCP Pass-Thru, Lip Sync Pass-Thru, CEC Protocol Pass-Thru. |
| EDID Modes: | Custom EDID, Predefined EDID, Copy Sink, Mixing. |
| Control Modes: | Webserver, OLED and rotary switch with click and push buttons. |
| Audio support: | Atmos, DTS-X, Dolby True HD & DTS Master Audio, etc. |
| OLED: | 1″ Diagonal, 128×64, 2 colors. |
| Dr.8K Size: | 3.9″L x 2.3″W x 0.8″H – in CM: 10 x 6 x 2.2. |
| Dr.8K Weight: | 120g – 0.26 LBS. |
| Input Lag: | <1ms (nanoseconds count). |
| Other info: | 3D Support, DSD, eARC (HDMI2.1). |
| Shipping Weight (kg) | 0.200000 |
|---|---|
| Type | AV Testing Tool |
| Manufacturer | HDFury |
| Supported Video Resolution | 8K 60Hz 4:4:4 |
| Multiroom Capable | No |
| Product Manual | https://drive.google.com/file/d/1jddkoDCWRlVjqd9rlAX-Y9afdluYIi8p/view?usp=share_link |
|---|
