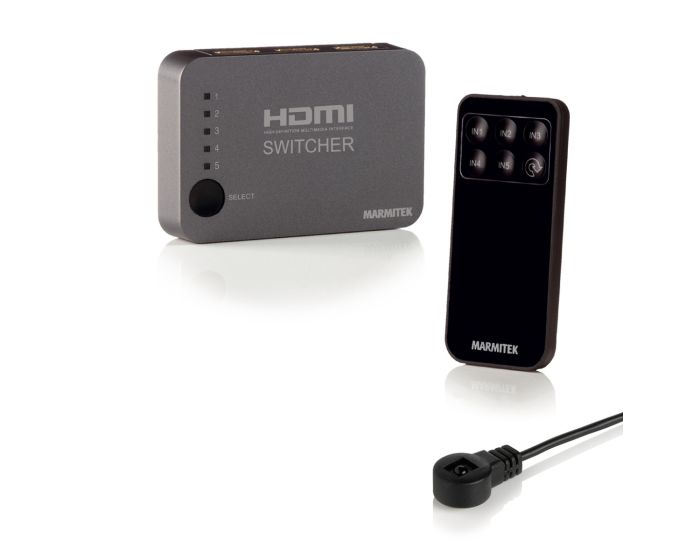

Marmitek Connect 350 5x1 HDMI Switch

SKU
08026
£44.95 Price (Inc VAT)
Dispatched today! (Order by 3pm)

EXPRESS CHECKOUTS






Only one cable to your TV screen! Switch between the HDMI devices connected
Suitable for connecting 5 HDMI sources to your TV simultaneously. You just need 1 HDMI input and you never have to switch cables again.
For connecting a game console like PlayStation and Xbox, Blu-ray Player, satellite receiver and all other HDMI devices.
Full HD 1080p.
Switches automatically and/or with remote control.
With separate IR receiver for operating the switcher when it is placed out of sight.



Kit Contents
1x HDMI Switcher
1x Remote control (battery included)
1x Power adaptor
1x Infrared receiver
1x User manual



Technical Data
Resolution
Supported HDTV Resolutions 480p, 576i, 576p, 720p, 1080i, 1080p
Supported PC Resolution (max) 1920 x 1200
Maximal Pixel Frequency (max) 225 MHz
Maximal Bit Rate (max) 2.25 Gbps

In- and outputs
HDMI Input (19-pin female) 5 HDMI
HDMI Output (19-pin female) 1 HDMI

Maximal HDMI cable length 15 metres

Remote control
Infrared remote control Battery included CR2025

Housing Switcher
Dimensions (H x W x D) 80 x 18 x 58mm
Weight 250 g

Ambient
Ambient temperature +0 to +40 C
Ambient humidity 10% to 85%

Power
External power adaptor Input: 100-240VAC @50-60Hz Output: 5VDC @ 300mA

More Information
Weight (kg) 0.300000
Manufacturer Marmitek
By Type Video Switcher
Warranty 1 year
Colour Grey
Main Power 5V
Input Types HDMI
Maximum Video Inputs 5
Supported Outputs HDMI
Maximum Video Outputs 1
Supported Audio Formats Dolby Digital 5.1
Control Method IR
IR Control Yes
Multiroom Capable No
HDMI Version HDMI® 1.3
HDCP HDCP 1.1
MSRP £42.60
