PureTools - HDMI Matrix 4x4 incl. Quadview VideoWall


PT-MA-HD44-QV 4 x 4 MultiView HDMI Matrix is the only completely independent HDMI system that can arrange four HDMI multimedia sources and dynamically exhibit them on 4 displays in various modes.

£1,780.99 Price (Inc VAT)
Dispatched today! (Order by 3pm)

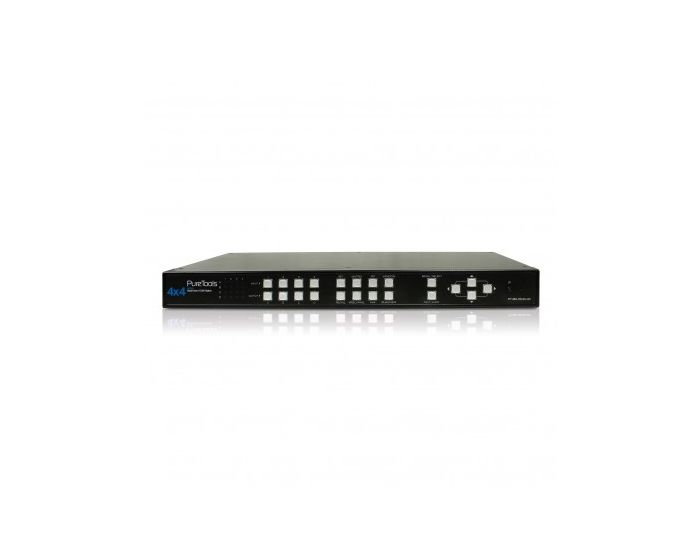

PureTools HDMI 4x4 QuadView Matrix Switcher

The PT-MA-HD44-QV 4x4 MultiView HDMI Matrix Sqitcher is the only fully independent HDMI system that can dynamically distribute four HDMI multimedia sources to up to 4 displays and arrange them individually in a total of 6 different modes, such as Picture-in-Picture or Quadview (see manual for detailed descriptions). Each source signal can be scaled individually and switched without delay or a black screen. HID input (mouse) provides extensive control functions such as crop, drag & drop, and zoom in/out. The Videowall function enables the display of a complete picture on several displays. This is the ideal solution for A/V switching, distribution and transmission.


  • Completely independent video wall Quad view system with 6 video modes and up to 8 user configurable presets.
  • Smooth dynamic scaling of up to 4 inputs.
  • Select any input to be displayed on up to 4 monitors.
  • Change mode and scaling with no delays.
  • Intuitive mode operation by front panel Push Buttons, OSD (keyboard / mouse), IR Remote Control or RS232.
  • The system can support digital video resolutions up to FullHD (1080p) or WUXGA (1920 x 1200). With 4 screens, a total of 4K / UltraHD video resolution is possible.
  • Supports locking HDMI cables.
  • Sturdy metal rack-mountable casing designed for 1U application.
  • Zoom in / out and picture-crop functions.
  • Advanced RS232 commands.
  • Drag and Drop feature to easily arrange all windows.

Mode Overview:

  1. Matrix Mode: Viewing 4 video sources on up to 4 displays in any config.
  2. Picture-in-Picture: Viewing main image with 1 sub image in smaller window.
  3. Picture-and-Picture: Viewing main image with 3 subordinate images in smaller windows.
  4. Windows mode: All video sources can be viewed simultaneously with various window sizes and positions
  5. Video wall mode: Viewing one selected video source on multiple displays as one. The images can be configured in 2x2 or 1x3 mode
  6. Quadview: Viewing all video sources on a single display

  7. Mouse Control Features:

    • Zoom In & Out
    • Drag & Drop
    • Crop & Display
More Information
Manufacturer Purelink
Type Video Tiler
No Inputs x No Outputs 4x4
Product Range PureTools
Warranty 3 years
Colour Black
Main Power 12V
Form Factor 1U
Input Types USB-A, USB-B, RS232 Phoenix, HDMI-A, TR
Audio Input Types N/A
Maximum Video Inputs 4
Supported Outputs HDMI
Audio Output Types N/A
Maximum Video Outputs 4
Supported Audio Formats Dolby Digital 5.1, DTS 5.1, DTS-HD
Control Method USB, IR, RS232, Button
IR Control Forwards
Multiroom Capable No
Instruction Manual https://www.purelink.de/marketing/daten/purelink_handbuecher/PureTools/PT-MA-HD44-QV_manual_DE_EN_rev_2016-09-28_web.pdf
